Insatll SquirrelMail in Ubuntu

original link:
http://www.server-world.info/en/note?os=Ubuntu_11.04&p=httpd&f=12




Install SquirrelMail to build web-based mail transfer system like yahoo mail or hotmail. SMTP/IMAP server is needed to run in your LAN.

www.server.world
- SquirrelMail Server

mail.server.world
- SMTP/IMAP Server


And add 'index.php' in "DirectoryIndex" setting.

[1] Install SquirrelMail
root@www:~#
aptitude -y install squirrelmail squirrelmail-compatibility squirrelmail-secure-login squirrelmail-decode squirrelmail-locales


root@www:~#
/etc/squirrelmail/conf.pl
# run config script

SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Main Menu --
1. Organization Preferences
2. Server Settings
3. Folder Defaults
4. General Options
5. Themes
6. Address Books
7. Message of the Day (MOTD)
8. Plugins
9. Database
10. Languages

D. Set pre-defined settings for specific IMAP servers

C Turn color off
S Save data
Q Quit

Command >>
1

# select

SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Organization Preferences
1. Organization Name
: SquirrelMail

2. Organization Logo
: ../images/sm_logo.png

3. Org. Logo Width/Height
: (308/111)

4. Organization Title
: SquirrelMail

5. Signout Page
:

6. Top Frame
: _top

7. Provider link
: http://squirrelmail.org/

8. Provider name
: SquirrelMail


R Return to Main Menu
C Turn color off
S Save data
Q Quit

Command >>
5

# change log-out page



When users click the Sign Out button they will be logged out and
then sent to signout_page. If signout_page is left empty,
(hit space and then return) they will be taken, as normal,
to the default and rather sparse SquirrelMail signout page.

[]:
/webmail

# change log-out page

SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Organization Preferences
1. Organization Name
: SquirrelMail

2. Organization Logo
: ../images/sm_logo.png

3. Org. Logo Width/Height
: (308/111)

4. Organization Title
: SquirrelMail

5. Signout Page
: /webmail

6. Top Frame
: _top

7. Provider link
: http://squirrelmail.org/

8. Provider name
: SquirrelMail


R Return to Main Menu
C Turn color off
S Save data
Q Quit

Command >>
r

# back to menu

SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Main Menu --
1. Organization Preferences
2. Server Settings
3. Folder Defaults
4. General Options
5. Themes
6. Address Books
7. Message of the Day (MOTD)
8. Plugins
9. Database
10. Languages

D. Set pre-defined settings for specific IMAP servers

C Turn color off
S Save data
Q Quit

Command >>
2

# select

SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Server Settings

General
-------
1. Domain
: trim(implode('', file('/etc/'.(file_exists('/etc/mailname')?'mail':'host').'name')))

2. Invert Time
: false

3. Sendmail or SMTP
: SMTP


A. Update IMAP Settings
: localhost:143 (other)

B. Change Sendmail Config
: localhost:25


R Return to Main Menu
C Turn color off
S Save data
Q Quit

Command >>
1

# change to your domain name


The domain name is the suffix at the end of all email addresses. If
for example, your email address is jdoe.com, then your domain
would be example.com.

[trim(implode('', file('/etc/'.(file_exists('/etc/mailname')?'mail':'host').'name')))]:
server.world

# input your domain name

SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Server Settings

General
-------
1. Domain
: server.world

2. Invert Time
: false

3. Sendmail or SMTP
: SMTP


A. Update IMAP Settings
: localhost:143 (other)

B. Change Sendmail Config
: localhost:25


R Return to Main Menu
C Turn color off
S Save data
Q Quit

Command >>
A

# select


SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Server Settings

General
-------
1. Domain
: server.world

2. Invert Time
: false

3. Sendmail or SMTP
: SMTP


IMAP Settings
--------------
4. IMAP Server
: localhost

5. IMAP Port
: 143

6. Authentication type
: login

7. Secure IMAP (TLS)
: false

8. Server software
: other

9. Delimiter
: detect


B. Update SMTP Settings
: localhost:25

H. Hide IMAP Server Settings

R Return to Main Menu
C Turn color off
S Save data
Q Quit

Command >>
4

# select


This is the hostname where your IMAP server can be contacted.
[localhost]:
mail.server.world

# specify your IMAP server

SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Server Settings

General
-------
1. Domain
: server.world

2. Invert Time
: false

3. Sendmail or SMTP
: SMTP


IMAP Settings
--------------
4. IMAP Server
: mail.server.world

5. IMAP Port
: 143

6. Authentication type
: login

7. Secure IMAP (TLS)
: false

8. Server software
: other

9. Delimiter
: detect


B. Update SMTP Settings
: localhost:25

H. Hide IMAP Server Settings

R Return to Main Menu
C Turn color off
S Save data
Q Quit

Command >>
8

# select


Each IMAP server has its own quirks. As much as we tried to stick
to standards, it doesn't help much if the IMAP server doesn't follow
the same principles. We have made some work-arounds for some of
these servers. If you would like to use them, please select your
IMAP server. If you do not wish to use these work-arounds, you can
set this to "other", and none will be used.
   bincimap
= Binc IMAP server

   courier
= Courier IMAP server

   cyrus
= Cyrus IMAP server

   dovecot
= Dovecot Secure IMAP server

   exchange
= Microsoft Exchange IMAP server

   hmailserver
= hMailServer

   macosx
= Mac OS X Mailserver

   mercury32
= Mercury/32

   uw
= University of Washington's IMAP server

   gmail
= IMAP access to Google mail (Gmail) accounts

   other
= Not one of the above servers

[other]:
dovecot

# select Dovecot

SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Server Settings

General
-------
1. Domain
: server.world

2. Invert Time
: false

3. Sendmail or SMTP
: SMTP


IMAP Settings
--------------
4. IMAP Server
: mail.server.world

5. IMAP Port
: 143

6. Authentication type
: login

7. Secure IMAP (TLS)
: false

8. Server software
: dovecot

9. Delimiter
: detect


B. Update SMTP Settings
: localhost:25

H. Hide IMAP Server Settings

R Return to Main Menu
C Turn color off
S Save data
Q Quit

Command >>
B

# select


SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Server Settings

General
-------
1. Domain
: server.world

2. Invert Time
: false

3. Sendmail or SMTP
: SMTP


SMTP Settings
-------------
4. SMTP Server
: localhost

5. SMTP Port
: 25

6. POP before SMTP
: false

7. SMTP Authentication
: none

8. Secure SMTP (TLS)
: false

9. Header encryption key
:


A. Update IMAP Settings
: mail.server.world:143 (dovecot)

H. Hide SMTP Settings

R Return to Main Menu
C Turn color off
S Save data
Q Quit

Command >>
4

# select


This is the hostname of your SMTP server.
[localhost]:
mail.server.world

# specify your SMTP server

SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Server Settings

General
-------
1. Domain
: server.world

2. Invert Time
: false

3. Sendmail or SMTP
: SMTP


SMTP Settings
-------------
4. SMTP Server
: mail.server.world

5. SMTP Port
: 25

6. POP before SMTP
: false

7. SMTP Authentication
: none

8. Secure SMTP (TLS)
: false

9. Header encryption key
:


A. Update IMAP Settings
: mail.server.world:143 (dovecot)

H. Hide SMTP Settings

R Return to Main Menu
C Turn color off
S Save data
Q Quit

Command >>
7

# select


If you have already set the hostname and port number, I can try to
automatically detect the mechanisms your SMTP server supports.
Auto-detection is *optional* - you can safely say "n" here.

Try to detect auth mechanisms? [y/N]:
y

# yes

Trying to detect supported methods (SMTP)...
Testing none: SUPPORTED
Testing login: SUPPORTED
Testing CRAM-MD5: NOT SUPPORTED
Testing DIGEST-MD5: NOT SUPPORTED

What authentication mechanism do you want to use for SMTP connections?
none - Your SMTP server does not require authorization.
login - Plaintext. If you can do better, you probably should.
cram-md5 - Slightly better than plaintext.
digest-md5 - Privacy protection - better than cram-md5.

*** YOUR SMTP SERVER MUST SUPPORT THE MECHANISM YOU CHOOSE HERE ***
If you don't understand or are unsure, you probably want "none"

none, login, cram-md5, or digest-md5 [none]:
login

# select login

SMTP authentication uses IMAP username and password by default.

Would you like to use other login and password for all SquirrelMail
SMTP connections? [y/N]:
n

SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Server Settings

General
-------
1. Domain
: server.world

2. Invert Time
: false

3. Sendmail or SMTP
: SMTP


SMTP Settings
-------------
4. SMTP Server
: mail.server.world

5. SMTP Port
: 25

6. POP before SMTP
: false

7. SMTP Authentication
: login (with IMAP username and password)

8. Secure SMTP (TLS)
: false

9. Header encryption key
:


A. Update IMAP Settings
: mail.server.world:143 (dovecot)

H. Hide SMTP Settings

R Return to Main Menu
C Turn color off
S Save data
Q Quit

Command >>
r

# back to menu

SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Main Menu --
1. Organization Preferences
2. Server Settings
3. Folder Defaults
4. General Options
5. Themes
6. Address Books
7. Message of the Day (MOTD)
8. Plugins
9. Database
10. Languages

D. Set pre-defined settings for specific IMAP servers

C Turn color off
S Save data
Q Quit

Command >>
10

# select

SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Language preferences
1. Default Language
: en_US

2. Default Charset
: iso-8859-1

3. Enable lossy encoding
: false


R Return to Main Menu
C Turn color off
S Save data
Q Quit

Command >>
1

# select


SquirrelMail attempts to set the language in many ways. If it
can not figure it out in another way, it will default to this
language. Please use the code for the desired language.

[en_US]:
ja_JP

# specify your language

SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Language preferences
1. Default Language
: ja_JP

2. Default Charset
: iso-8859-1

3. Enable lossy encoding
: false


R Return to Main Menu
C Turn color off
S Save data
Q Quit

Command >>
2

# select

This option controls what character set is used when sending
mail and when sending HTML to the browser.

This option is used only when default language is 'en_US'.

[iso-8859-1]:
iso-2022-jp

# specify your language

SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Language preferences
1. Default Language
: ja_JP

2. Default Charset
: iso-2022-jp

3. Enable lossy encoding
: false

R Return to Main Menu
C Turn color off
S Save data
Q Quit

Command >>
r

# back to menu

SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Main Menu --
1. Organization Preferences
2. Server Settings
3. Folder Defaults
4. General Options
5. Themes
6. Address Books
7. Message of the Day (MOTD)
8. Plugins
9. Database
10. Languages

D. Set pre-defined settings for specific IMAP servers

C Turn color off
S Save data
Q Quit

Command >>
4

# select

SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
General Options
1. Data Directory
: /var/lib/squirrelmail/data/

2. Attachment Directory
: /var/spool/squirrelmail/attach/

3. Directory Hash Level
: 0

4. Default Left Size
: 150

5. Usernames in Lowercase
: false

6. Allow use of priority
: true

7. Hide SM attributions
: false

8. Allow use of receipts
: true

9. Allow editing of identity
: true

   Allow editing of name
: true

   Remove username from header
: false

10. Allow server thread sort
: false

11. Allow server-side sorting
: false

12. Allow server charset search
: true

13. Enable UID support
: true

14. PHP session name
: SQMSESSID

15. Location base
:

16. Only secure cookies if poss.
: true

17. Disable secure forms
: false

18. Page referal requirement
:


R Return to Main Menu
C Turn color off
S Save data
Q Quit

Command >>
7

# select

Hide SM attributions (y/n) [n]:
y

# Yes

SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
General Options
1. Data Directory
: /var/lib/squirrelmail/data/

2. Attachment Directory
: /var/spool/squirrelmail/attach/

3. Directory Hash Level
: 0

4. Default Left Size
: 150

5. Usernames in Lowercase
: false

6. Allow use of priority
: true

7. Hide SM attributions
: true

8. Allow use of receipts
: true

9. Allow editing of identity
: true

   Allow editing of name
: true

   Remove username from header
: false

10. Allow server thread sort
: false

11. Allow server-side sorting
: false

12. Allow server charset search
: true

13. Enable UID support
: true

14. PHP session name
: SQMSESSID

15. Location base
:

16. Only secure cookies if poss.
: true

17. Disable secure forms
: false

18. Page referal requirement
:


R Return to Main Menu
C Turn color off
S Save data
Q Quit

Command >>
r

# back to menu

SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Main Menu --
1. Organization Preferences
2. Server Settings
3. Folder Defaults
4. General Options
5. Themes
6. Address Books
7. Message of the Day (MOTD)
8. Plugins
9. Database
10. Languages

D. Set pre-defined settings for specific IMAP servers

C Turn color off
S Save data
Q Quit

Command >>
8

# select

SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Plugins
Installed Plugins
1. secure_login
2. view_as_html

Available Plugins:
3. administrator
4. bug_report
5. calendar
6. compatibility
7. delete_move_next
8. demo
9. filters
10. fortune
11. info
12. listcommands
13. mail_fetch
14. message_details
15. newmail
16. sent_subfolders
17. spamcop
18. squirrelspell
19. test
20. translate

R Return to Main Menu
C Turn color off
S Save data
Q Quit

Command >>
7

# add "delete_move_next" (number is different at an env)

SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Plugins
Installed Plugins
1. secure_login
2. view_as_html
3. delete_move_next

Available Plugins:
4. administrator
5. bug_report
6. calendar
7. compatibility
8. demo
9. filters
10. fortune
11. info
12. listcommands
13. mail_fetch
14. message_details
15. newmail
16. sent_subfolders
17. spamcop
18. squirrelspell
19. test
20. translate

R Return to Main Menu
C Turn color off
S Save data
Q Quit

Command >>
15

# add "newmail" (number is different at an env)

SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Plugins
Installed Plugins
1. secure_login
2. view_as_html
3. delete_move_next
4. newmail

Available Plugins:
5. administrator
6. bug_report
7. calendar
8. compatibility
9. demo
10. filters
11. fortune
12. info
13. listcommands
14. mail_fetch
15. message_details
16. sent_subfolders
17. spamcop
18. squirrelspell
19. test
20. translate

R Return to Main Menu
C Turn color off
S Save data
Q Quit

Command >>
8

# add "compatibility" (number is different at an env)

SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Plugins
Installed Plugins
1. secure_login
2. view_as_html
3. delete_move_next
4. newmail
5. compatibility

Available Plugins:
6. administrator
7. bug_report
8. calendar
9. demo
10. filters
11. fortune
12. info
13. listcommands
14. mail_fetch
15. message_details
16. sent_subfolders
17. spamcop
18. squirrelspell
19. test
20. translate

R Return to Main Menu
C Turn color off
S Save data
Q Quit

Command >>
q

# quit


You have not saved your data.
Save? [Y/n]:
y

# save

Data saved in config.php

Exiting conf.pl.
You might want to test your configuration by browsing to
http://your-squirrelmail-location/src/configtest.php
Happy SquirrelMailing!

root@www:~#
vi /etc/apache2/conf.d/SquirrelMail.conf


# create new

Alias /webmail /usr/share/squirrelmail
<Location /webmail>
Order Deny,Allow

Deny from all

Allow from 10.0.0.0/24
# IP address you allow to access

</Location>


root@www:~#
/etc/init.d/apache2 restart

* Restarting web server apache2
... waiting ...done.

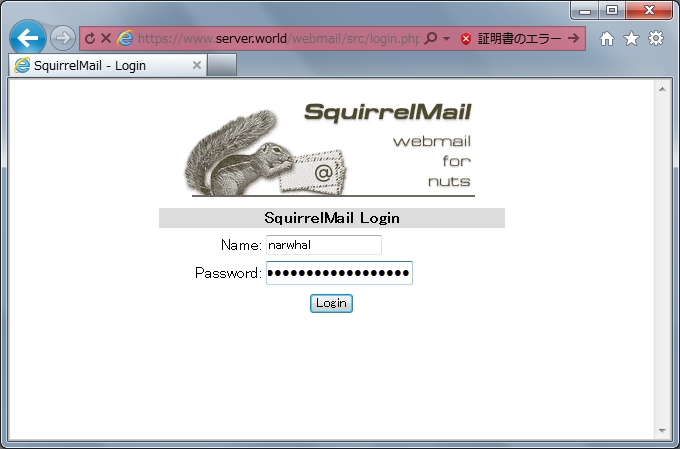

[2] Access to 'http://(your server's name or IP address/)/webmail/', then follwing sacreen is shown, then authenticate your user name and password to login.

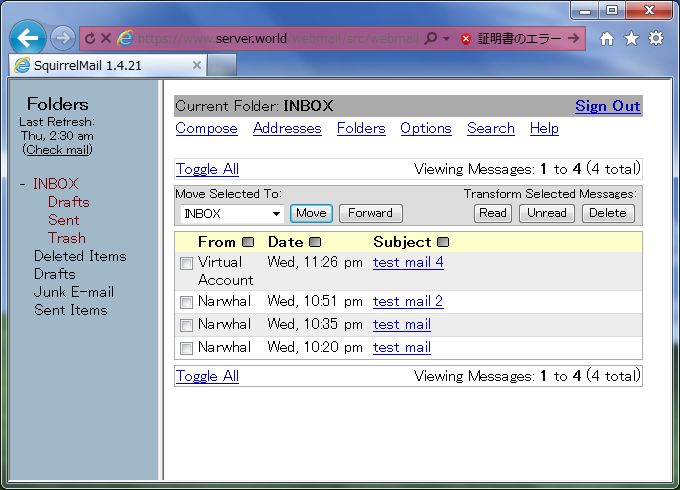

[3] Just logined


No comments:

Post a Comment
